Forged Fitting

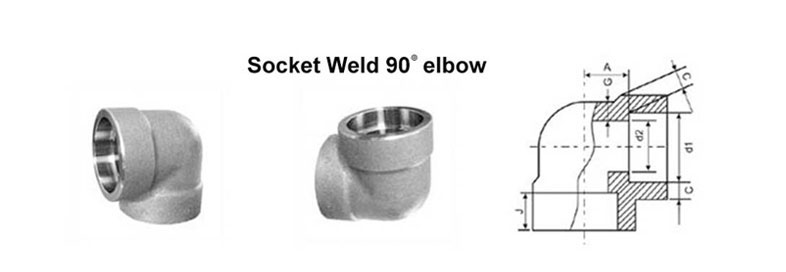

Elbow 90°

Dimension : ANSI, ASME, DN, JIS, MSS etc.

Size : 1/4" NB-4 NB

Thikness :3000#, 6000#, 9000# (any special thickness)

Stainless Steel : ASRMA182F 304, 304H, 316, 316L, 316H, 316Ti, 321, 309, 310, 347, 904L ect.

Nickel Alloys : HastAlloy, Monel, Inconnel, Nickel, Cupro Nickel, Titanium, Duplex, Super Duplex etc.

Technical Data

Nominal Diameter Depth of Socket Dimension of Socket Wall Thickness Center to Bottom of Socket
A
Cmin 90°Elbow 45°Elbow
DN NPS Jmin d1 3000LB 6000LB 9000LB 3000LB 6000LB 9000LB 3000LB 6000LB 9000LB
6 1/8 10 10.7 3.2 3.5 - 11 11 - 8 8 -
8 1/4 10 14.1 3.3 4 - 11 15 - 8 8 -
10 3/8 10 17.5 3.5 4.4 - 13 15 - 8 12 -
15 1/2 10 21.8 4.1 5.2 8.2 16 19 25 11 13 16
20 3/4 13 27.4 4.3 6.1 8.6 19 22 28 13 14 18
25 1 13 34.2 5 7 10 22 27 32 14 18 22
32 1.1/4 13 42.9 5.3 7 10.6 27 32 35 18 21 22
40 1.1/2 13 48.3 5.6 7.8 11.2 32 38 38 21 25 25
50 2 13 61.1 6.1 9.5 12.2 38 41 41 25 29 29
65 2.1/2 16 76.9(73.8) 7.7 12.5 - 41 57 - 29 32 -
80 3 16 89.8 8.3 13.8 - 57 64 - 32 35 -
100 4 19 115.5 9.4 - - 66 - - 42 - -
