» Elbow 180° Short Radius Specification

» Elbow 180° Short Radius Dimension

» Elbow 180° Short Radius Packaging

» Why Choose Us for Elbow 180° Short Radius

» Elbow 180° Short Radius Application indusries

» Elbow 180° Short Radius Prices List (At Factory Price)

» Elbow 180° Short Radius Inventory

INTRODUCTION

Best Quality Buttweld Fittings Manufacturer & SupplierSunflex Metal Industries is known for its best quality manufacturing and exporting of Elbow 180° Short Radius. With Holding years of experience in manufacturing, we continue to offer robust quality of Elbow 180° Short Radius with very reasonable prices across all over the world. We are confident enough to guarantee on the products and services provided by us to our clients. Our Products have found various applications in different industrial requirements, including - Oil & Gas, Chemical, Petrochemical, Plant, Pulp & Paper, Environment & Water Projects, Engineering Projects and more.


Elbow 180° Short Radius Specification

Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6. Ceramic Lined
Special alloys: nickel, Ni-based, Cu-based, Co-based, Fe-based
Size:
Outer Diameter (D): D<=1220mm
Wall Thickness (T): T<=120mm
L/R Elbow( 90deg & 45deg & 180deg.),
S/R Elbow (90deg & 45deg & 180deg.)
Pressure: SCH5 to SCH160
Manufacturing standard: ANSI, JIS, DIN, EN, API 5L, etc.
Bending Angle: Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.
End Bevel: According to the bevel of welding pipe fittings construction
Surface treatment:Shot blasted, rust-proof black oil
Packing: Plywood Case/ Pallet/ other

Elbow 180° Short Radius Dimension

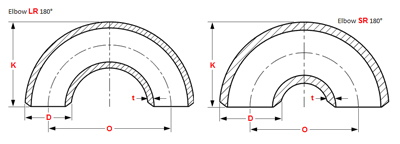

Dimensions Butt Weld Elbows 180° LR & SR ASME B16.9

NPSO.D.
D
180° Long Radius180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
1/221.37648......
3/426.77651......
133.476565141
42.295706452
48.3114837662
260.315210610281
73190132127100
388.9229159152121
101.6267184178140
NPSO.D.
D
180° Long Radius180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
Dimensions Butt Weld Elbows 180° LR & SR ASME B16.9 / Elbow 180° Short Radius Specification
NPSO.D.
D
180° Long Radius180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
4114.3305210203159
5141.3381262254197
6168.3457313305237
8219.1610414406313
10273762518508391
12323.8914619610467
14355.61067711711533
16406.41219813813610
184571372914914686
20508152410161016762
22559167611181118838
24610182912191219914
NPSO.D.
D
180° Long Radius180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

Dimensional Tolerances of Butt Weld Elbows 180° LR and SR ASME B16.9

Nominal Pipe Size1/2 to 2½3 to 3½45 to 810 to 1820 to 24
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.61.6+ 2.4
- 1.6
+ 4
- 3.2
+ 6.4
- 4.8
Inside Diameter at End0.81.61.61.63.24.8
Center to Center (O)66661010
Back to Face (K)666666
Wall Thickness (t)Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
